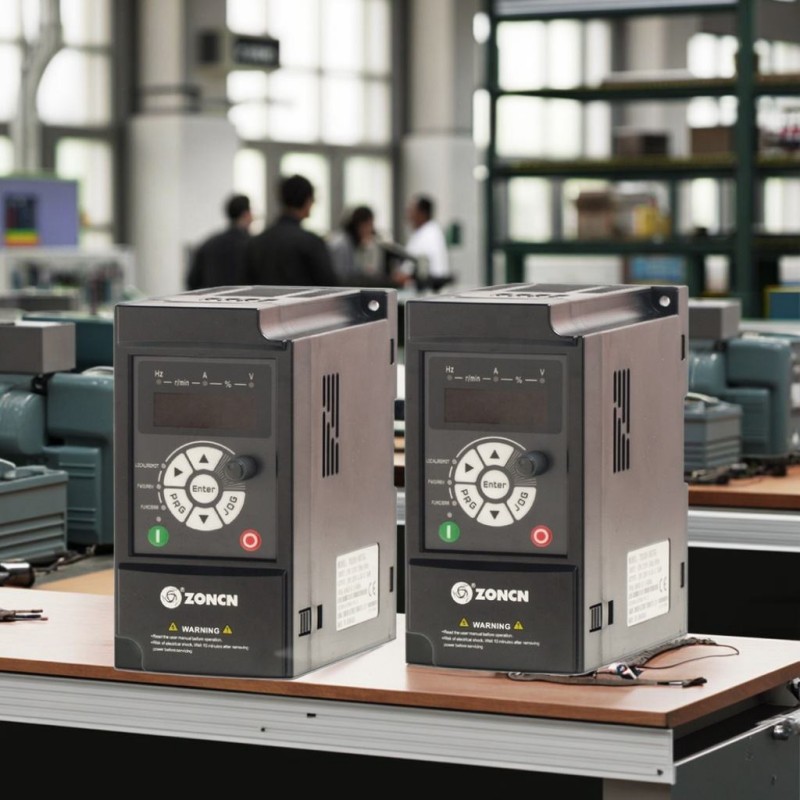

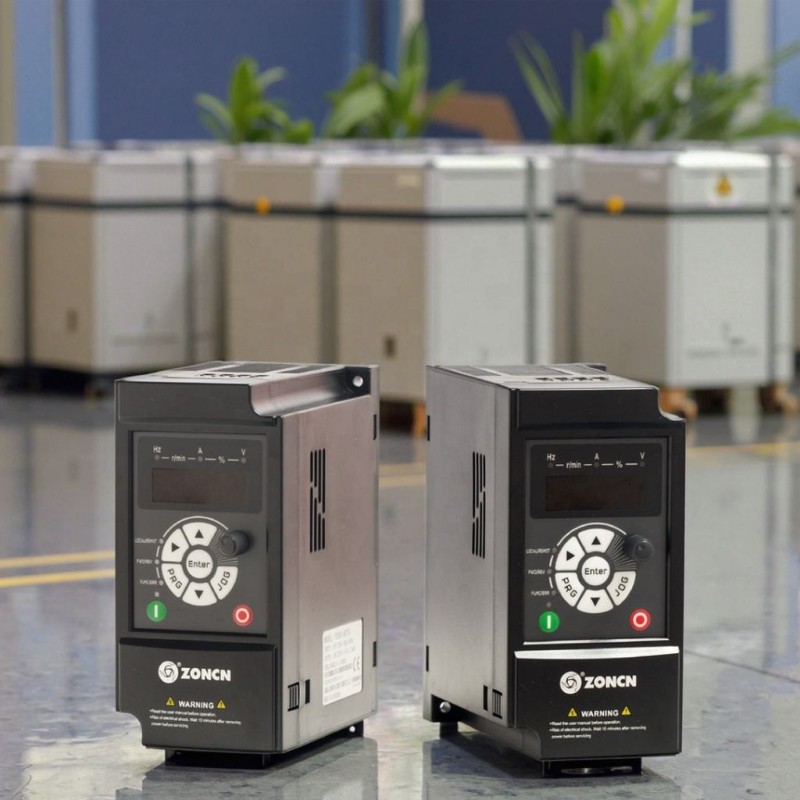

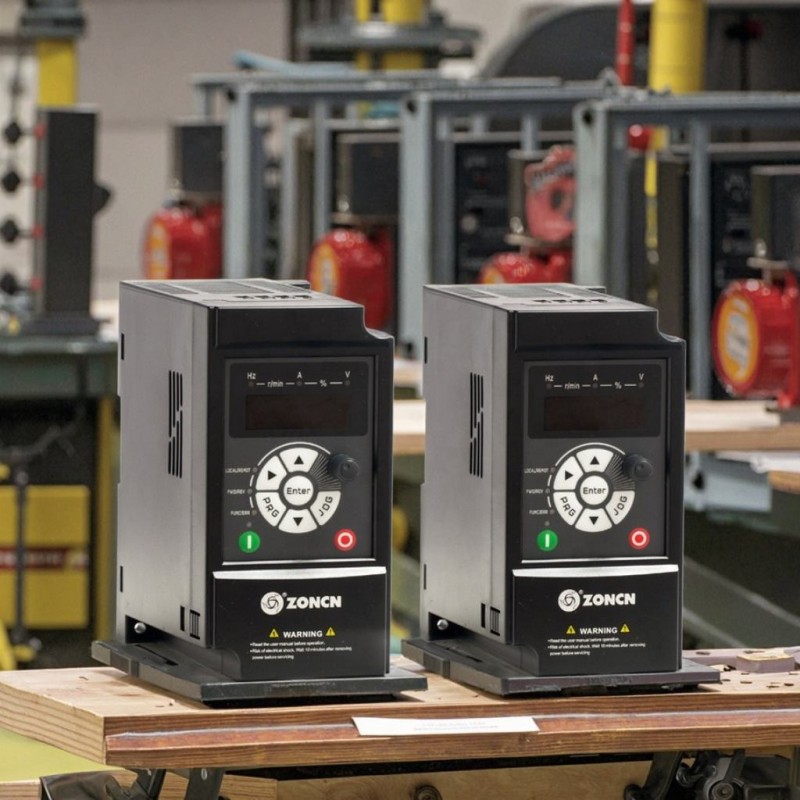

This equipment is a 1HP (0.75kW) 220V single-phase input and three-phase output vector frequency conversion drive set, consisting of a high-performance vector frequency converter and a three-phase frequency conversion dedicated motor, specially designed for civilian and light industrial single-phase 220V power supply scenarios. Breaking the limitations of traditional three-phase equipment power supply, there is no need for three-phase electrical wiring, and single-phase electricity can be used for household and factory use. At the same time, it is equipped with advanced sensorless vector control technology, which combines the advantages of low-speed high torque, precise speed regulation, silent energy saving, stability and durability, perfectly adapting to the speed regulation and driving needs of small and medium-sized mechanical equipment. It is a cost-effective and preferred set for upgrading constant speed motors and equipment automation transformation.
Power: 1HP (0.75kW)
-Suitable voltage: three-phase 220V
-Adaptive frequency: 0-50/60Hz (adjustable)
-Insulation level: F-class high insulation, resistant to high-frequency frequency conversion impact
-Operating characteristics: sufficient low-speed torque, low temperature rise, low noise, uniform speed
-Structural technology: precision bearings, silent blades, dust-proof body
Номер изделия :
T9200-0R75GМинимальный объем заказа (MOQ) :
20Оплата :
Paypal/TT/Western UnionПроисхождение продукта :
Shanghai, ChinaЦвет :
BlackВремя выполнения :
18-30 daysМасса :
2 kg1.1. Horsepower = 0. Horsepower = 0.75kW.75kW. It is a small power vector frequency converter commonly used for small equipment. It is a small power vector frequency converter commonly used for small equipment. The industry abbreviation for this is 1HP vector frequency converter, specifically designed to match 0.75kW three-phase asynchronous motors. The industry abbreviation for this is 1HP vector frequency converter, specifically designed to match 0. Some models are also compatible with permanent magnet synchronous motors.
75kW three-phase asynchronous motors.It is divided into two power supply specifications:
Some models are also compatible with permanent magnet synchronous motors.Three-phase 380V input model (T4): Industrial 380V power supply, output three-phase 380V, used in factory assembly lines and small machine tools.
Technical Specification
|
Maximum frequency |
0-600Hz |
|
Carier frequency |
0.5kHz-16kHz The carrier frequency is automatically adjusted based on the load features. |
|
Output Frequency |
Vector Control: 0~300Hz V/F Control: 0~3200Hz |
|
Performance |
|
|
Input frequency resolution |
G: Type:0.5Hz/150%SVC) P: Type:0.5Hz/100% |
|
Speed range |
1:100(SVC) |
|
Speed stability accuracy |
±0.5%(SVC) |
|
Overload capacity |
G Type:60s for 150% of the rated cuurent, 3s for 180% of the rated curent PType:60s for 120% of the rated current, 3s for 150% of the rated current. |
|
Torque boost |
Auto-boost; Customized boost:0.1%-30.0% |
|
VF curve |
Straight-line VF cuve: Multi-point VF curve: N-power VF curve(1.2-power,1.4-power,1 .6-power,1.8-power,square |
|
VF separation |
2 types: complete separation; half separation |
|
Ramp Mode |
Straight-line ramp; Four groups of acceleration/deceleration time with the range of |0.00'6500.0s |
|
Simple PLC, Multiple preset speeds |
It can keep constant output voltage automatically when the mains voltage change |
|
Special Feature |
|
|
Rapi d curent limit It |
helps to avoid frequent over current faults of the AC drive. |
|
Torque limit and control |
It can limit the torque automatically and prevent frequent over current tripping curing the running process. Torque control can be implemented in the Fvo mode. |
|
Support for multiple PG card |
Support for differential input PG card, resolver PG card, rotating transforner PG card |
|
Rapid curent limit |
It helps to avoid frequent over current faults of the AC drive. |
