Сервосистема переменного тока серии US880/US810

Сервосистема переменного тока серии US880/US810

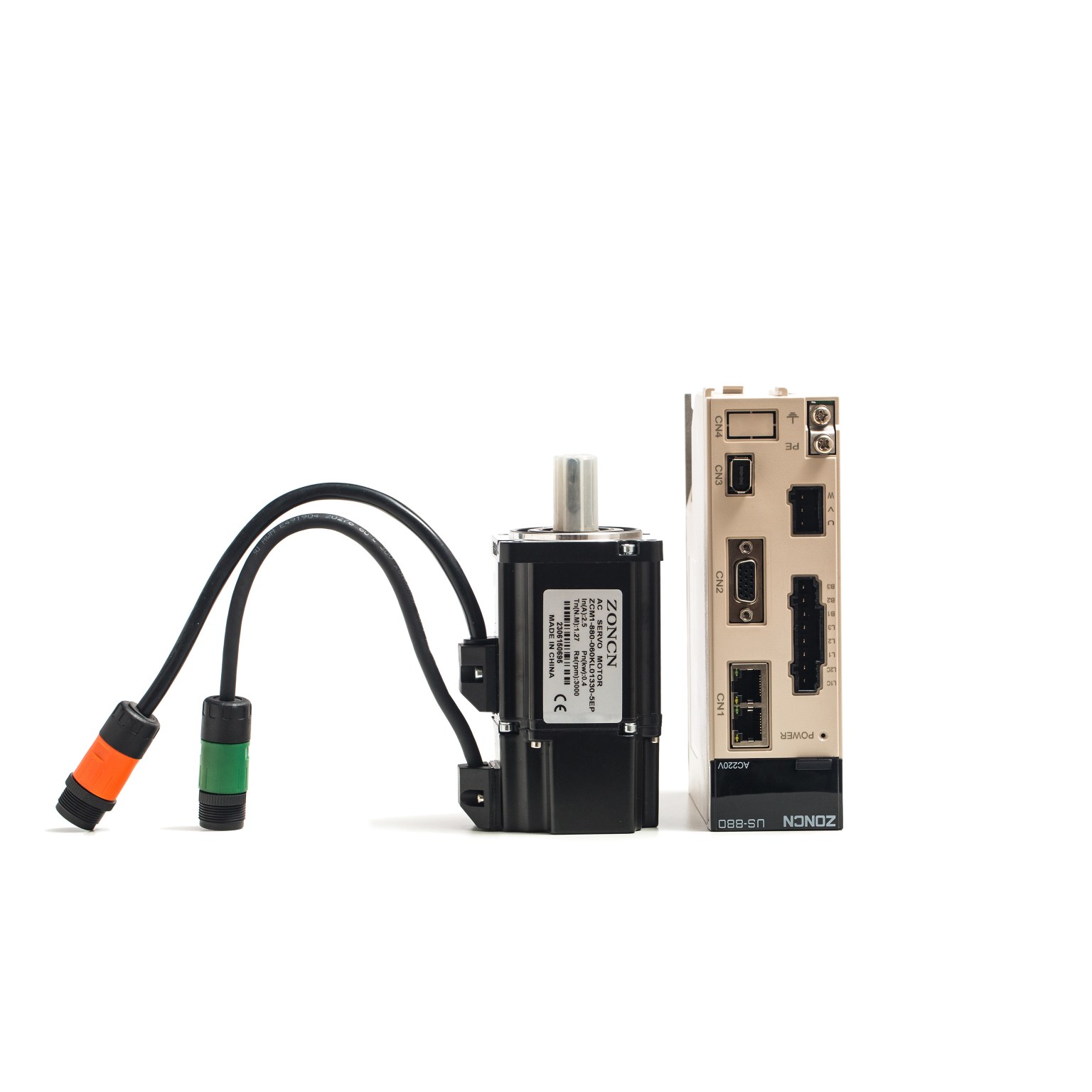

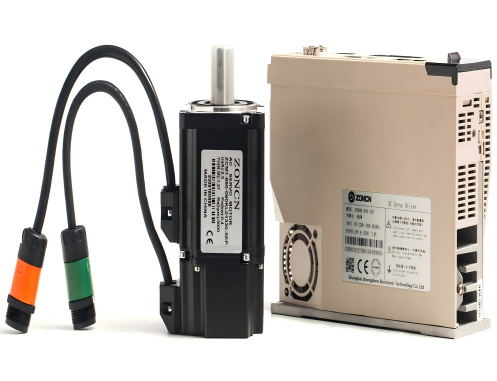

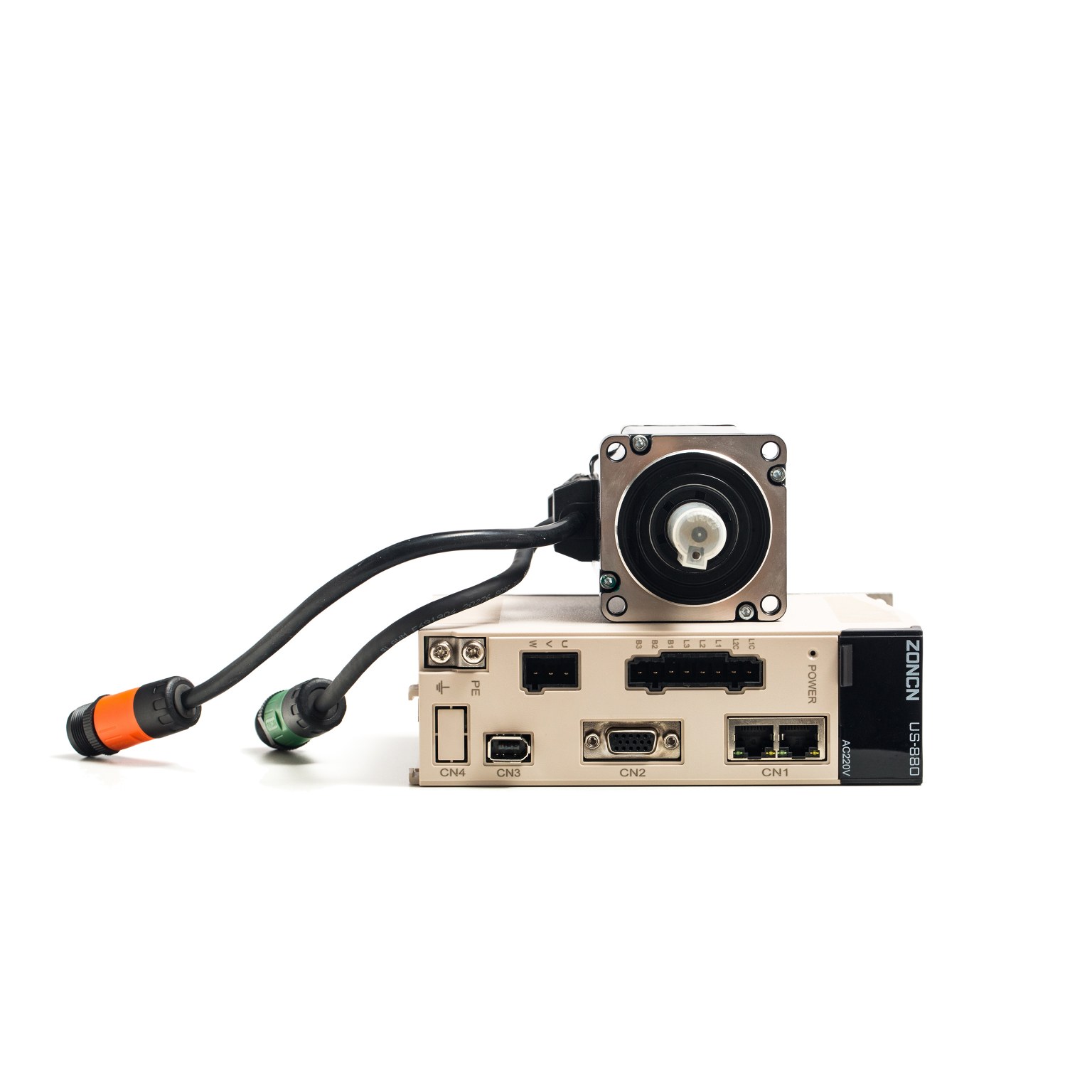

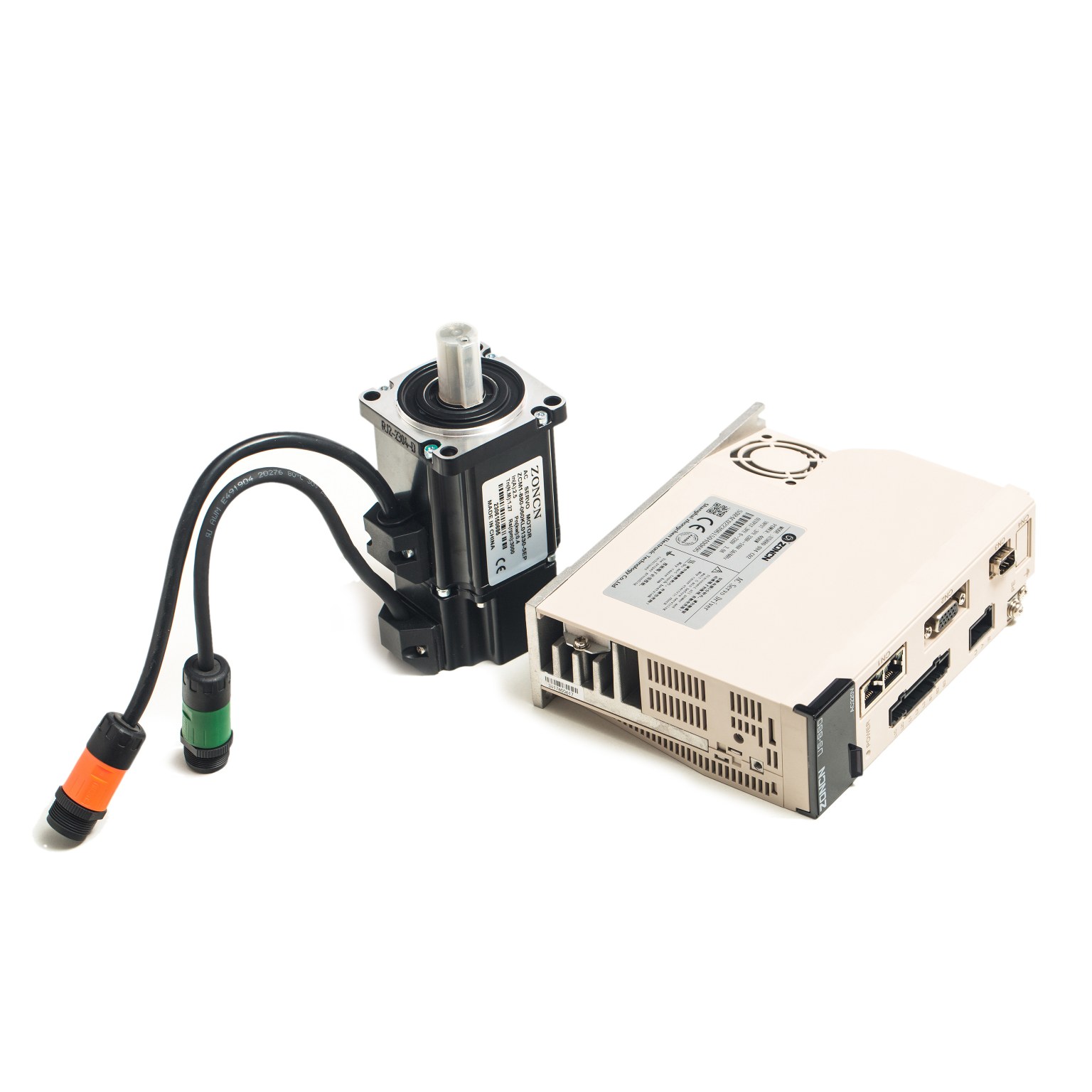

Модель US880/810 предлагает множество функций управления, поддерживает различные протоколы связи и имеет расширенные возможности настройки параметров, что позволяет ей справляться со сложными задачами обработки. Она подходит для токарных станков с ЧПУ, гравировальных и фрезерных станков, а также другого подобного оборудования.

Номер изделия :
NZ100
Минимальный объем заказа (MOQ) :
20
Оплата :
Paypal/TT/Western Union
Происхождение продукта :
Shanghai, China
Цвет :
Black
Время выполнения :
18-30 days
Масса :
Maximum 1kg

ЗАПРОСИТЬ ИНФОРМАЦИЮ СЕЙЧАС

The US880/810 boasts comprehensive control functions and communication protocol support, including advanced technologies such as position/velocity/torque control, dynamic braking and energy consumption braking, and zero-speed locking. It seamlessly integrates with the Ether CAT and Yaskawa M3 bus communication protocols, enabling the execution of various complex machining tasks through flexible parameter settings. Widely applicable to CNC lathes, engraving machines, milling machines, and other CNC equipment, it delivers stable and reliable control solutions for precision manufacturing across diverse industries, significantly enhancing machining efficiency and product quality.

Product Features

● Multi-function Control

● Position/Velocity/Torque Control

● Electronic Gear Function

● Speed/Torque Limit Function

● Home Search Function

● Zero-Speed Lock Function

● Smooth Speed Command Ramp Function

● Dynamic Brake and Energy Consumption Brake

● Multiple Fault Protection Functions

● Soft Reset Function

● Support Ether CAT Bus Communication Protocol

● Support Yaskawa M3 Bus Communication Protocol

Typical Applications

CNC lathes: Excellent product quality, high precision, fast speed, smooth surface, smooth and precise contouring of 3Dsurfaces, right angles and straight lines, chip cutting functionality.

Precision engraving machines: High resolution, precise positioning, matching of rotational inertia, high overload capacity.

Engraving and milling machines: Good speed stability, high precision, fast response frequency, wide speed range, low-speed high torque.

Engraving machines: Fast speed response, good product smoothness, minimal patterns, smooth curve cutting.

Drilling and tapping machines: High-speed and low-speed machining with high precision, wide adjustment range, adaptable to different product requirements.

Machining centers: Rich parameter settings, combined with debugging frequency division coefficients, inertia friction compensation, gain filter, and other parameters to accomplish various complex machining tasks.

Technical Specifications

Item				US880/US810
Basic Function	Input power	Control Circuit Power		1PHAC200V～AC240V 50/60Hz
		Main Circuit Power		US880	US810
				3PH220V:0.2KW~5.5KW 3PH380V:1.5KW~11KW	1PH220V:0.2KW~1.0KW 3PH220V:1.5KW~2.0KW 3PH380V:2.0KW～15KW
	Environment Condition	Temperature		Environment temperature 0℃~55℃(without condensing) Storage temperature-20℃~65℃(Maximum temperature 87℃72 hours)
		Humidity		Both using and storage need to keep below 90%RH(without condensing)
		Altitude		Lower than 1000m
		Vibration		Less than 5.88m/S²,10-60Hz(Can not continuous use under resonance frequency)
	Control mode			IGBT PWM type sine wave drive
	Encoder feedback			24Bit(16777216)Absolute encoder 23Bit(8388608)Absolute encoder 17Bit(131072)Absolute encoder
	Communication	EtherCAT、M3		Industrial Ethernet bus(COE)
	Operation panel			1.4 keys 2.LED light 5 bits 3.CPU workable light 4.Vector signal monitor output
	Brake resistor			Built-in regenerative resistor (Can be external)
	Dynamic brake			Built in
Function	Position control	Signal input		US880 series support EtherCAT.M3
				US810 series support EtherCAT.Pulse signal input
		Resistance to vibration		Support
	Speed control	Signal input		US880 series support EtherCAT.M3
				US810 series support EtherCAT.External speed input
		Zero speed dead zone		According to zero speed dead zone input
		Instantaneous velocity observer		Support
		Speed command filter		Support
	Torque control	Signal input		US880 series support EtherCAT.M3
				US810 series support EtherCAT.External torque input
	Common use	Protection	Hardware error	Over voltage,under voltage,over speed,overload,over heat,over current,encoder fault
			Software error	Position deviation too large,command pulse frequency division,EEROM fault
		Alarm data track		Refer to alarm data list

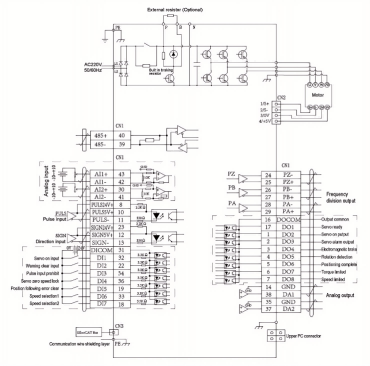

Typical Wiring Diagram

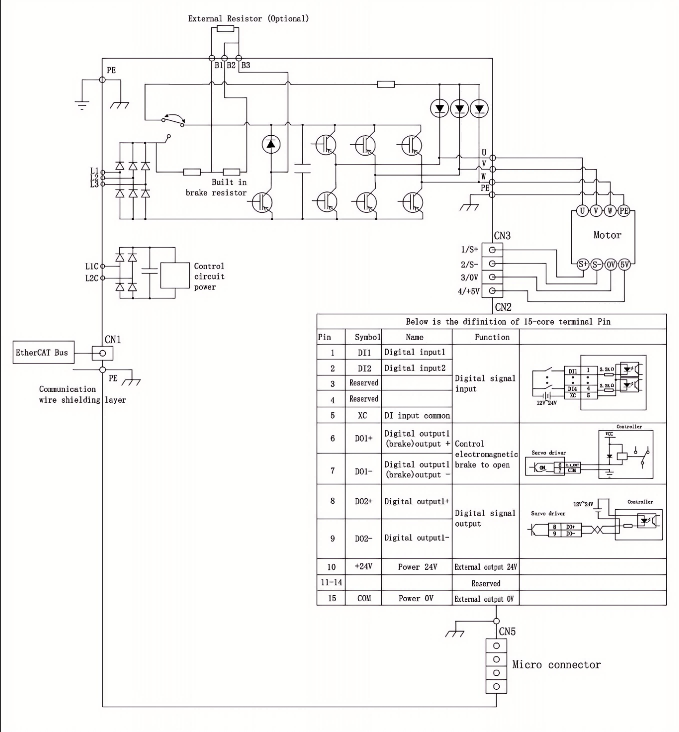

US880 Control Circuit Wiring

Dimension

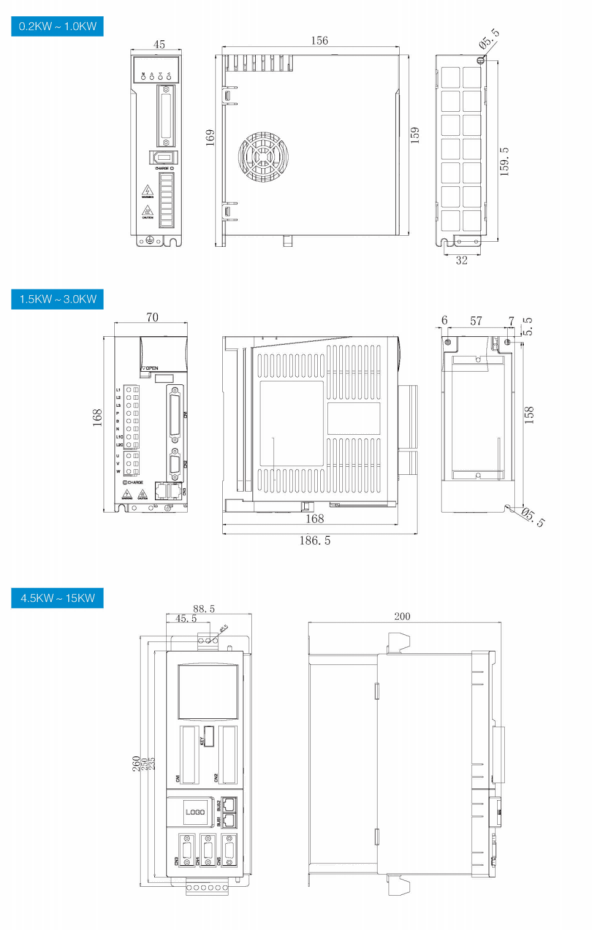

US880 Drive Installation Dimension
